RAIDER Sport
Boom Vang Installation Procedure
|
|
|
|

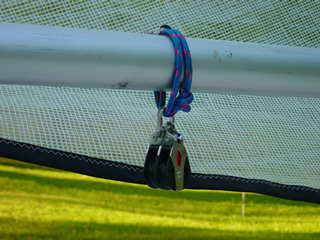

Step 1: Tie
double block to boom using a square knot. Be sure line goes through eye on
top of boom. |
|
|
|

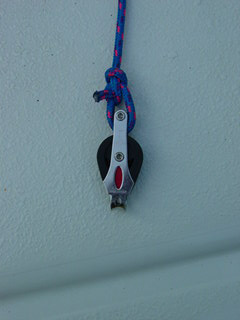

Step 2: Tie end
of Vang line to single block using a bowline knot. |
|
|
|

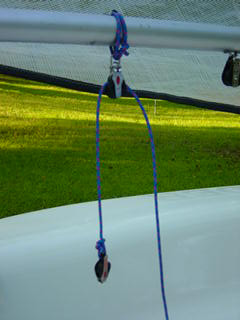

Step 3: Thread
other end of Vang line into double block on boom. |
|
|
|

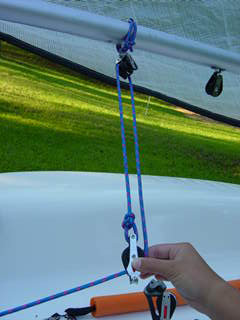

Step 4: Continue
threading Vang line in a clockwise direction into single block. |
|
|
|

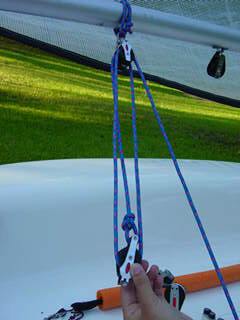

Step 5: Continue
threading Vang line in a clockwise direction into the remaining position
on the double block. |
 |
|
|
 |
|

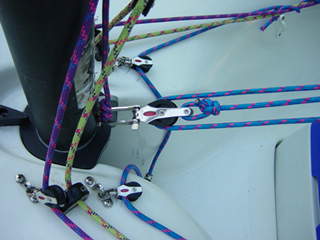

Step 6: Connect
single block to mast base using shackle. Be sure not to twist line. |
|
|
|

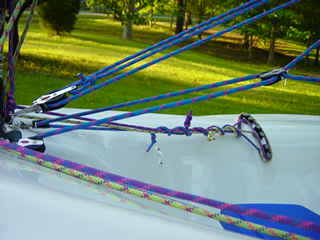

Step 7: Using a
bowline, tie the remaining end of Vang line to the eye of the block
located on the same colored Vang line that runs to either side of the
RAIDER Sport cockpit. |
|
|
|

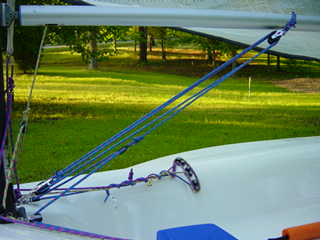

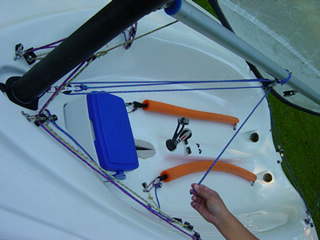

You have completed the
installation process of the Boom Vang, this photo shows the completed
setup. If yours does not look the same, please review the steps above. For
storage undo shackle in Step 6 and bowline in Step 7. Keep lines running
through blocks. |
